CEP003
Key word： CEP003
Category:
Product Details
| ● Incremental Cutting | |
| ● Rolling feed, effectively improving feeding and cutting efficiency | |
| ● Multiple beams and multiple cutting heads for efficient and fast cutting | |

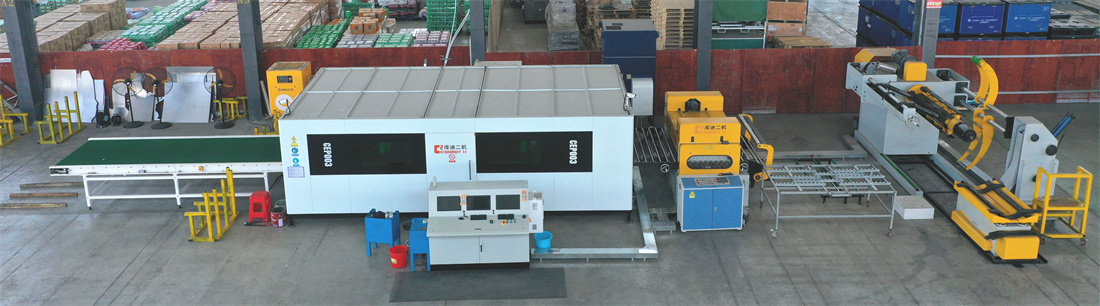

| ● The cutting process can be easily connected to a smooth and continuous production line with the steel coil unwinding and leveling process, integrating into one | |
| ● Multiple head edge finding to ensure cutting yield | |
| ● High material utilization rate |
| ● Industries with high requirements for leveling accuracy, such as high-strength plates, hot-formed parts, automotive welding parts, and home appliances |
| ● Automatic unwinding and leveling of coils, online servo feeding | |
| ● Laser continuous cutting of workpieces | |
| ● Online marking (optional) |
| ● Unwinding and leveling system (six-level nineteen-roller) | |
| ● Feeding system | |

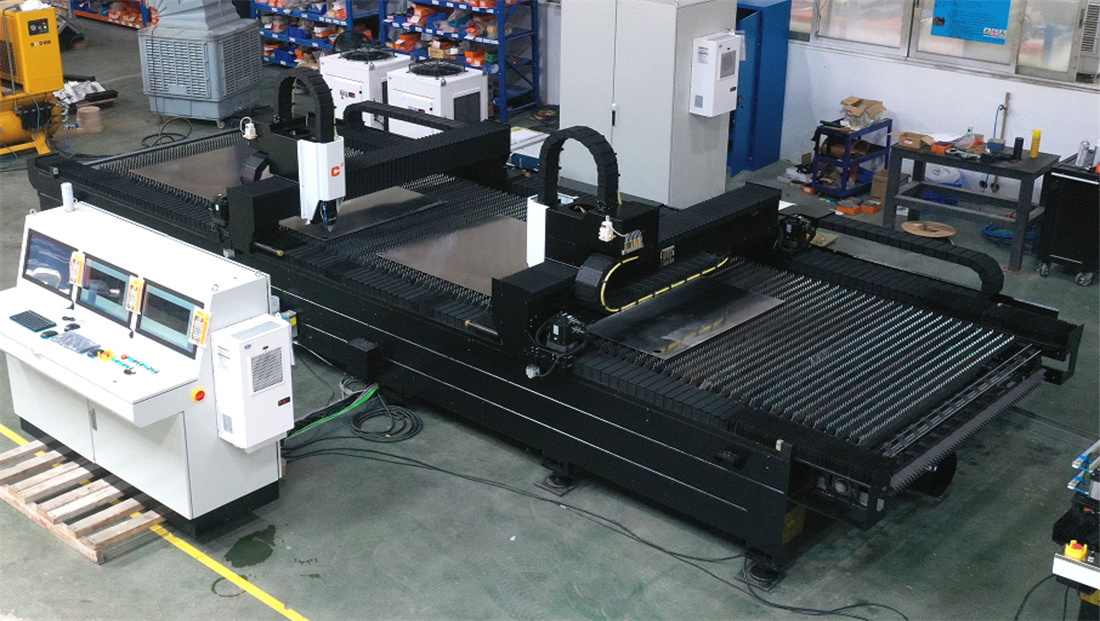

| ● Laser continuous cutting machine | |
| ● Material sorting and stacking system (optional) | |
| ● Marking system (optional) | |
| ● Multiple lasers, multiple beams, and multiple cutting heads |
| ● Applicable materials: aluminum plates, steel plates, stainless steel plates | |
| ● Material width: 3 00-2000 mm | |
| ● Material thickness: 0.5-3.0 mm/ 3.0-6.0 mm | |
| ● Leveling accuracy: | |
| ● Feeding speed: 0-15 m/min | |
| ● Laser power: 1 000-6 000 W | |
| ● Number of cutting heads: 1-4 | |
| ● Number of beams: 1-4 | |
| ● Repeat positioning accuracy: 0.03 mm |
Factory Advantages
Based on laser CNC technology Focus on coil blanking technology
We are committed to independent innovation and have formed complete independent intellectual property rights in the fields of CNC systems, laser blanking, and metal sheet forming machine tools.
We are committed to developing and creating cutting-edge products in the industry, aiming to become a leader in laser blanking equipment and technology.
Complete independent intellectual property rights, obtained a number of key core patents, the company's main product laser dynamic continuous cutting machine was awarded the high-tech product title by Guangdong Province
